Product introduction
The small Refrigerated Truck is a fantastic choice. It features a compact size for easy maneuverability in various settings. The advanced refrigeration system ensures precise temperature control to keep goods fresh. Its well-insulated body prevents heat exchange. The vehicle is durable and reliable, suitable for transporting perishables. With efficient fuel consumption, it’s cost-effective. User-friendly controls make operation a breeze. Whether for food, medicine, or other sensitive items, it provides a dependable solution for small-scale refrigerated transport needs.
Product specification
|
Truck Brand
|
SINOTRUK-HOWO Light Truck
|
|||
|
Driving wheel
|
4×2
|
|||
|
Driving type
|
Left Hand Driving
|
|||
|
Chassis Model
|
ZZ1047D3615C145
|
|||
|
Dimension(Lx W x H)(unloaded)(mm)
|
6200*2200*3150
|
|||
|
body dimension (L x W x H)mm
|
4100*2150*2150
|
|||
|
Approaching angle/Departure angle(°)
|
20/18
|
|||
|
Overhang(front/rear) (mm)
|
1160/1475
|
|||
|
Wheel base (mm)
|
3500
|
|||
|
Leaf spring
|
11/9+7H
|
|||
|
Max speed(km/h)
|
90
|
|||
|
Curb weight(kg)
|
1500
|
|||
|
Loading Weight(kg)
|
5000
|
|||
|
Engine
|
Model
|
4102, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
|
||
|
Fuel type
|
Diesel
|
|||
|
Horse Power, max(kw/rpm)
|
116HP
|
|||
|
Displacement(L)
|
3.76
|
|||
|
Emission
|
EURO II
|
|||
|
Fuel tanker capacity (L)
|
Standard
|
|||
|
Transmission
|
Model
|
WLY6T100, 6 forwards and 1 reverse
|
||
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
||
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|||
|
Front axle
|
2.4
|
|||
|
Rear axle
|
4.2
|
|||
|
Color
|
Optional
|
|||
|
Tyre
|
7.50R16 Steel , 6+1 Spare
|
|||
|
Cab
|
2080 Cabin with AC.
|
|||
|
Refrigerator unit
|
Thickness: Bottom: 105mm
Side and rear door: 85mm Protector Material: Q235 |
|||
|
Brand: Thermo King(American)
Type: Non-independent |
||||
|
Temperature: -18 degree-0 degree
|
||||
|

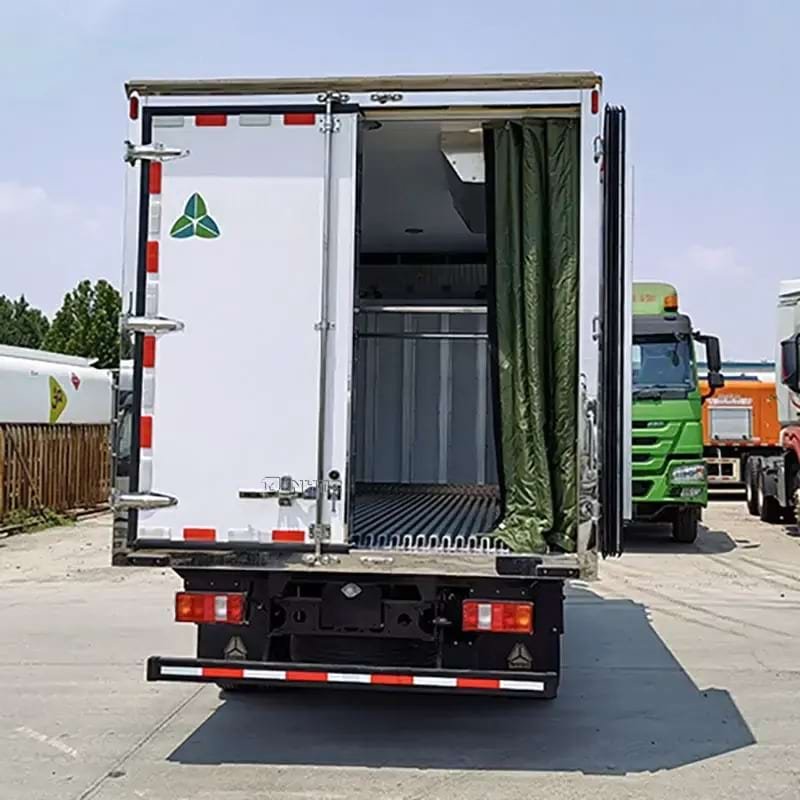

One pair door on the back side
Option: One door on the side will be add |
||||
|
More seals on the cryogenic insulation chamber effectively increase air-tightness
|
||||
|
The seamless body is smooth, easy to clean, and both impact and corrosion resistant.
|
||||
